[NEW] Mad Hatter Guitar Products Luminator Ten

A revolutionary switching system for strat style guitars released from Mad Hatter Guitar Products based in Arizona.

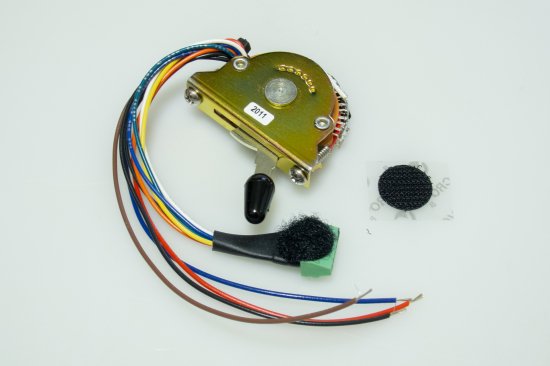

The system is called Luminator, and while changing the pot resistance and lever switch functionality to the PU, Hambacking is switched to a single coil and a single coil is switched to Hambacking.

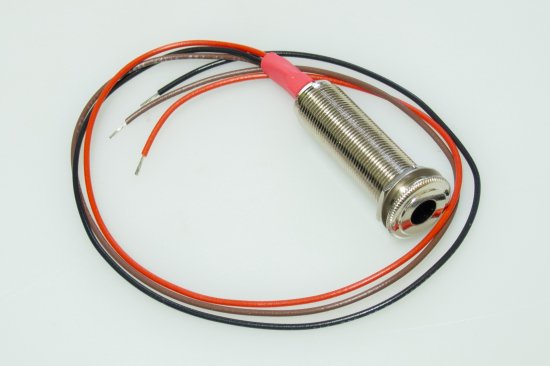

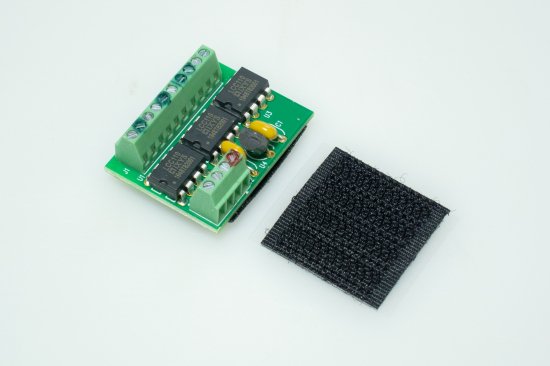

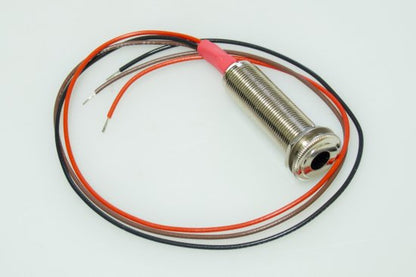

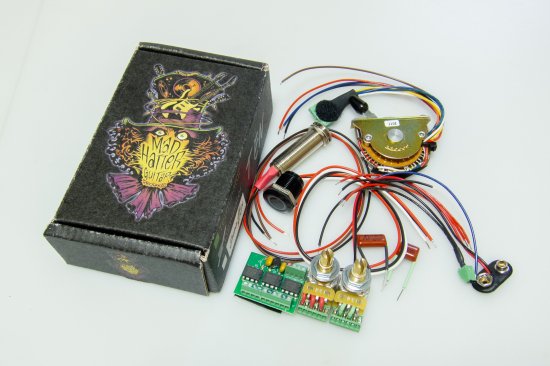

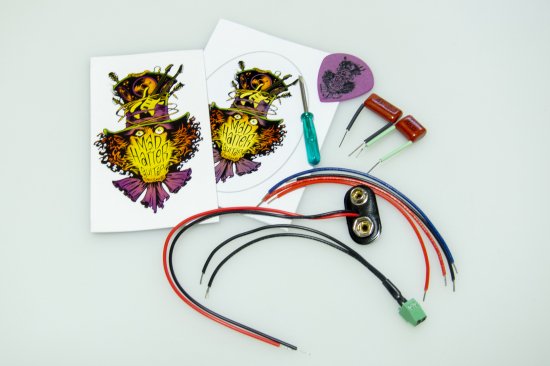

All parts such as dedicated pots are set, and installation is extremely simple.

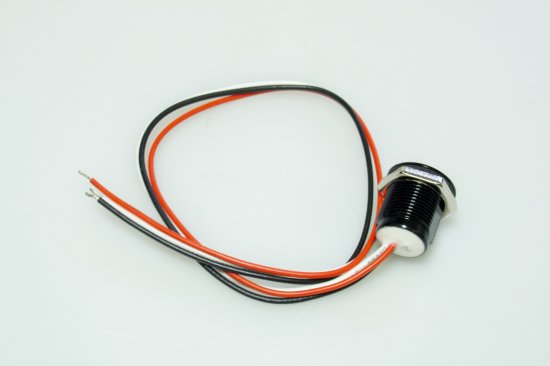

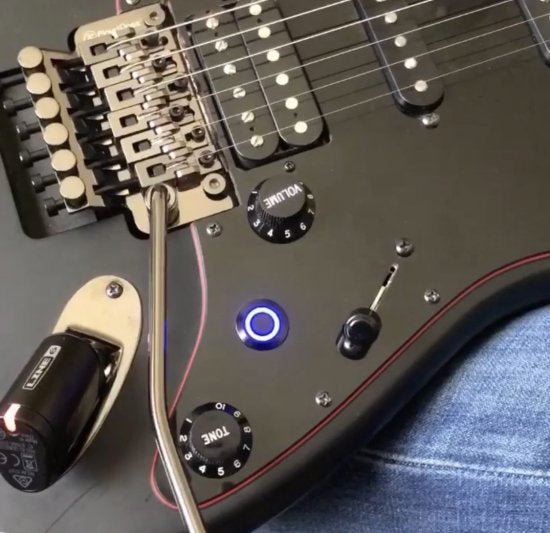

The color of the switching switch is a specification that the current setting can be determined.

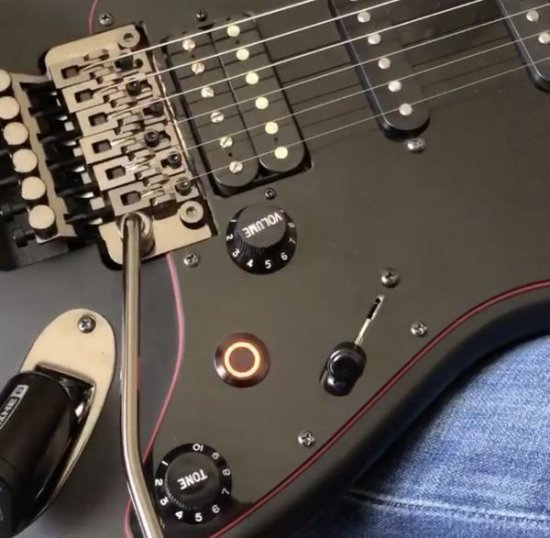

It is designed for exclusive use of HSH pick-up layout guitar.

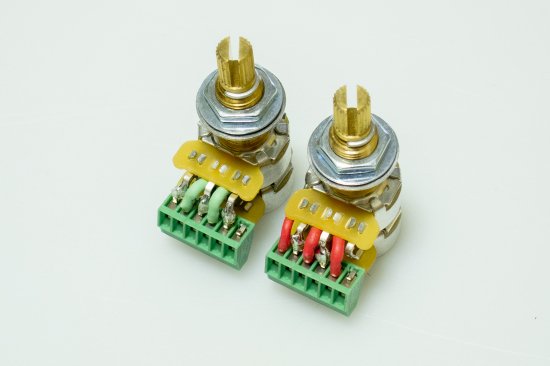

By turning on the switch, the volume pot switches from 500kĦ to 250kĦ, and two Hambacking pickups are coiled and output five single coil sounds.

Control in BLUE mode
Position One-Bridge Humbucker
Position Two-Bridge Humbucker & Middle Single Coil
Position Three-Bridge and Neck Humbuckers
Position Four-Neck Humbucker & Middle Single Coil
Position Five-Neck Humbucker

Control in red mode
Position One-BRIDGE HUMBUCKER SPLIT
Position Two-Bridge Humbucker Split & Middle Single Coil
Position Three-Middle Single Coil
Position Four-Neck Humbucker Split & Middle Single Coil
Position Five-Neck Humbucker Split

yBrand newz

Sentence

It ships in a sturdy cardboard box.
It also supports shipping for overseas.
Will Be Packed with Hard Cardboard Box.
We do not ship internationally.
