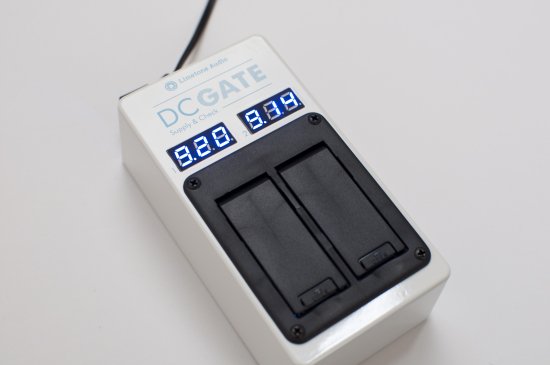

DC GATE is a battery box for 006P dry cell (9V battery) with the following features and functions.
Supply power to two pedals from two 9V batteries
? Top open design that can be replaced easily
? Battery remaining amount (voltage) with display function
? Power is supplied from 9V battery to pedal only while receiving 9 V power supply (prevent consumption of unintended batteries)
Connect the adapter to DC Gate and the LED of the main unit lights up when an external 9 V power is supplied. Circuits between batteries-effectors are connected. When the voltage measurement switch is pressed, the remaining amount of battery (voltage) is displayed for a few seconds.
Because the battery is not affected by power supply noise from other devices, it is possible to supply noise power to the distortion pedal.
"DC GATE" features a solid and nature presence. It is a model that is compatible with overdrive, fuzz and vintage effectors. It is designed with the main focus on conveying the characteristics of the battery and the goodness as it is.
"DC Gate Ver. 102SSC" uses Oyaine Electric's precision conductor "102 SSC". The sound grain is more finely craped, and it is finished in a direction that raises the sound of modern distortion and high gain pedal. Compared to "DC Gate", it will be a model that actively sounded while making use of the goodness of the battery.
This product is "DC GATE".
Connection terminal: IN 9 VDC, OUT1, OUT2
Accessories: Instruction Manual, Warranty
Outside size: Width (W) 65 mm, depth (D) 126 mm, height (H) 41 mm
Weight: 250 g
